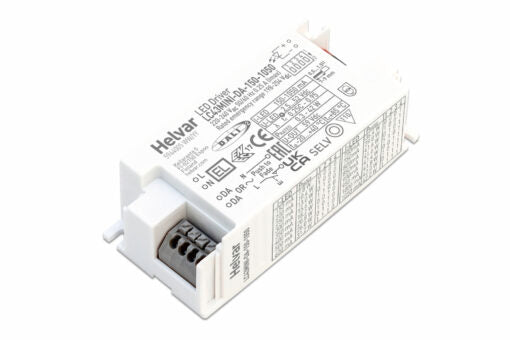

LC43MINI-DA-150-1050
43 W DALI-2 dimmable LED driver
- 150 mA – 1050 mA adjustable current output
- Product number: 5944005

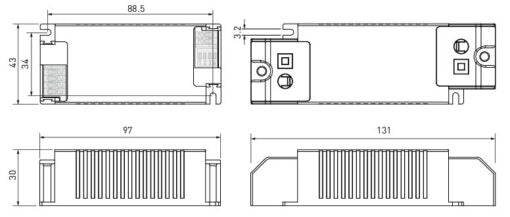

- Dimensions: 97 x 43 x 30 mm
If the strain relief is required plesae order HERE
Output
| Output |
DIP switch selectable current |
|---|---|
| Load protection |
SELV60 |
| Max output power (W) |
42 |
| Power factor at full load |
0.95 |
| Efficiency up to (%) |
87 |
| Total Harmonic Distortion @ Full power (THD %) |
9 |
| Min | Max | ||
|---|---|---|---|
| Iout | 150 | 1050 | |
| Uout | 2.5–52 | 2.5–40 |
