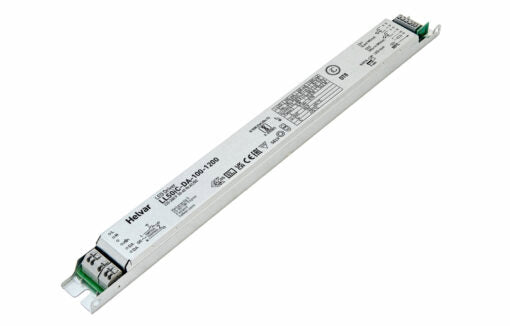

LL50iC-DA-100-1200
50 W 2-Channel Tunable White (DT8) DALI dimmable LED driver
- 100 mA - 1200 mA adjustable current output
- Product number: 5775000
- Dimensions: 360 x 30 x 21 mm
- LED Driver family: iC Series
Output
| Output |
Adjustable current |
|---|---|
| Load protection |
SELV60 |
| Max output power (W) |
50 |
| Efficiency up to (%) |
88 |
| Power factor at full load |
0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 100 | 1200 | |
| Uout | 12-50 | 20-42 |
Input & Operating Conditions
| Voltage range (VAC) |
198–264 |
|---|---|
| DC input characteristics |
Approved for emergency lighting applications |
| DC range (V) |
176-280 |
| Max temperature at tc point (°C) |
75 |
| Ambient temperature range |
–25 °C .. +45 °C |
| IP Rating |
IP20 |
| Lifetime up to (h) |
100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
Control
| Control |
|
|---|---|
| Dimming range |
2% – 100% |
| Dimming method |
Amplitude Dimming |
Features
| Helvar Driver Configurator support | ✓ |
|---|---|
| NTC | ✓ |
| Optional click-on strain relief for installation | ✓ |
| Complies with IEEE 1789-2015 | ✓ |
| NFC | ✓ |
| Current setting resistors | ✓ |
